System Specification
1. RAW WATER FEED PUMP
| Brand | : CNP |
| Model | : CHL 4-40 |
| Material | : SUS 304 |
| Motor | : 0.75KW |
| Volts/Current | : 220V-240V/50Hz/4.7A |
| Qty | : 1 SET |
- MULTIMEDIA PRE-FILTERATION SYSTEM
Model : HP1054
Material : FIBREGLASS REINFORCE PLASTIC (FRP)
Media : SILICA SAND (4 SIZES)
Media Quantity : 70KG
Control Valve : RUNXIN AUTO CONTROL VALVE
Qty : 1 SET
2. ACTIVATED CARBON FILTERTION SYSTEM
Model : HP1054
Material : FIBREGLASS REINFORCE PLASTIC (FRP)
Media : ACTIVATED CARBON 8X30
Media Quantity : 25KG
Control Valve : RUNXIN AUTO CONTROL VALVE
Qty : 1 SET
3. SOFTENER RESIN FILTERATION SYSTEM
Model : HP1054
Material : FIBREGLASS REINFORCE PLASTIC (FRP)
Media : CATION RESIN
Media Quantity : 40L
Control Valve : RUNXIN AUTO CONTROL VALVE

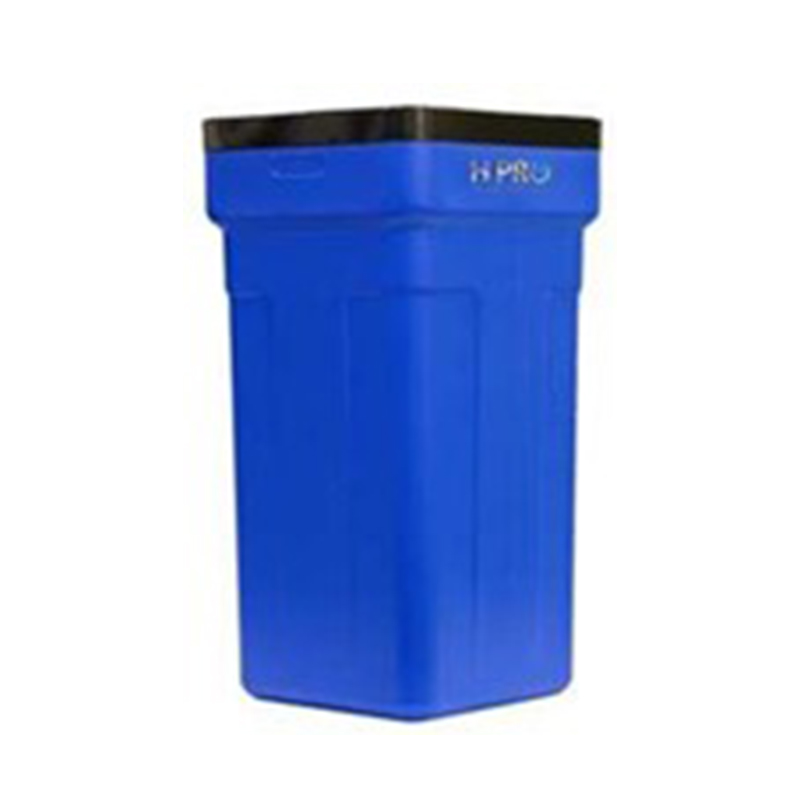

Brine Tank : PE (100L) + WATER SOFTENER SALT – 25KG
Qty : 1 Set
4. FILTER CATRIDGE HOUSING
Housing Model : 20’’ BLUE HOUSING
Housing Material : ENGINEERING PLASTIC
Filter Cartridge : 20’’ 5 MICRON PPF
Quantity : 1 UNIT

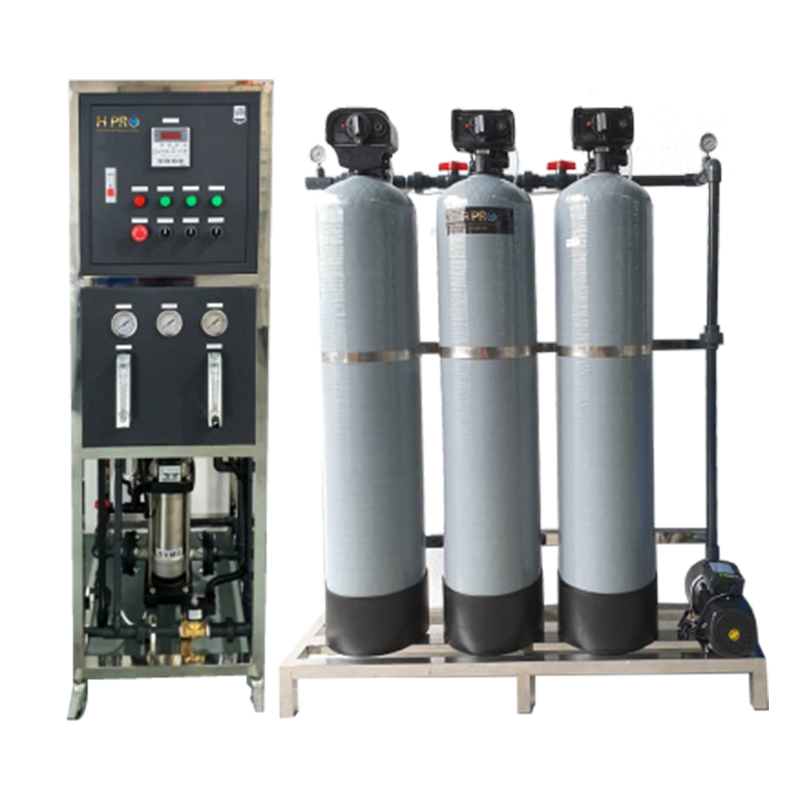

5. REVERSE OSMOSIS SYSTEM
| Model | : HP – RO-250 L PH |
| Approx. Height | : 159 0mm |
| Approx. Width | : 530 mm |
| Approx. Depth | : 550 mm |
| Capacity | : 0.25T/hr |
| Rejection | : 96% – 99% |
| Recovery | : 50% – 75% |
- HIGH PRESSURE PUMP
Brand : G-PUMP
Model : SVM 2-110
Power : 1.1 Kw / AC 230V
5.2 MEMBRANE ELEMENTS AND HOUSING
Brand : LG NANO H20
Membrane Model : 4’’ – BW 4040 R (Made in Korea) Power : 1.1 Kw / AC 230V
Housing Material : 4’’ STAINLESS STEEL #304 SEAMLESS) Qty : 1 PCS
5.3 ACCESSORIES & FITTINGS
Pressure Gauge : 3.0 MPa/1.0MPa SS With oil (3pcs)
RO Controller : Model: ROC 2315 (Full Auto)
Solenoid Valve : BRASS CJ-20/15/220 (2pcs)
Low Pressure Control : BD – A3
Flow Meter Permeate : 5G ARCYLIC PMMA Flow Meter Reject : 5G ARCYLIC PMMA
Qty : 1 SET
5.4 SIKD MATERIAL & CONNECTION
Frame Material : STAINLESS STEEL
Contact Box : STAINLESS STEEL SUS304
Low Pressure Piping : UPVC – SCH – 80 High Pressure Piping : UPVC – SCH – 80
