1. RAW WATER FEED PUMP
| Brand | : G – PUMP |
| Model | : SHM 2-40 |
| Material | : SUS 304 |
| Motor | : 0.55KW |
| Volts/Current | : 220V-240V/50Hz/4.7A |
| Qty | : 1 SET |
2. MULTIMEDIA PRE-FILTERATIONSYSTEM
Model : HP1354
Material : FIBREGLASS REINFORCE PLASTIC (FRP)
Media : SILICA SAND (4 SIZES)
Media Quantity : 150KG
Control Valve : DIGITAL AUTOMATIC CONTROLVALVE RUN XIN F 67B1
Qty : 1 SET
3. ACTIVATED CARBON FILTERTION SYSTEM
Model : HP1354
Material : FIBREGLASS REINFORCE PLASTIC (FRP)
Media : ACTIVATED CARBON 8X30
Media Quantity : 50KG
Control Valve : DIGITAL AUTOMATIC CONTROLVALVE RUN XIN F 67B1
Qty : 1 SET
4. SOFTENER RESIN FILTERATION SYSTEM
Model : HP1354
Material : FIBREGLASS REINFORCE PLASTIC (FRP)
Media : CATION RESIN
Media Quantity : 80L
Control Valve : DIGITAL AUTOMATIC CONTROLVALVE RUN XIN F63B1
Brine Tank : PE (100L) + WATER SOFTENER SALT – 25KG
Qty : 1 Set
5. MATERIAL OF CONSTRUTION
Frame Material : STAINLESS STEEL #304
Low Pressure Piping : UPVC – SCH – 80
High Pressure Piping : UPVC – SCH – 80
Approx. Height : 1670 0mm
Approx. Width : 1220 mm
Approx. Depth : 700 mm

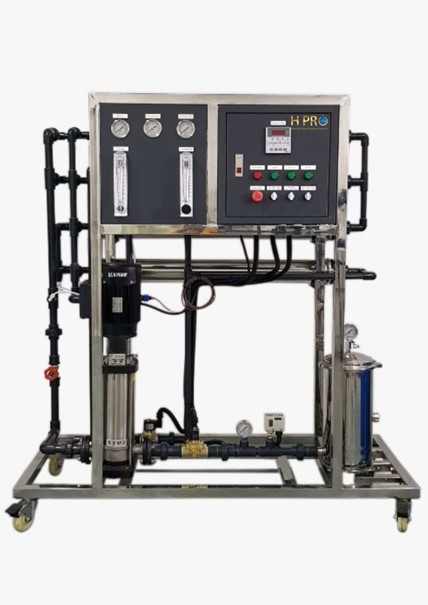

MAIN REVERSE OSMOSIS SYSTEM
1. REVERSE OSMOSIS SYSTEM
| Model | : HP – RO-1000 LPH |
| Approx. Height | : 1610mm |
| Approx. Width | : 1530 mm |
| Approx. Depth | : 700 mm |
| Capacity | : 1T/hr |
| Rejection | : 96% – 99% |
| Recovery | : 60% – 75% |
| Feed Water TDS | : 1500PPM |
| Nominal Perm..Rate | : 1.0m³/Hr |
| Approx. Conc. Rate | : 0.4m³/Hr |
| Approx. Conc Recycle Rate | : 0.6m³/Hr |
| Approx. Feed Rate | : 1.5m³/Hr |
2. HIGH PRESSURE PUMP
Brand : G-PUMP
Model : SVM 2-180
Power : 2.2 Kw / AC 230V
Qty : 1 UNIT
3. FILTER CATRIDGE HOUSING
Housing Model : STAINLESS STEEL MULTI CARTRIDGE HP PP 5
Housing Material : STAINLESS STEEL #304
Filter Cartridge : 2.75’’x 10’’ 5 MICRON PPF x 5 PCS
Quantity : 1 UNIT
4. MEMBRANE ELEMENTS AND HOUSING
Brand : LG NANO H20
Membrane Model : 4’’ – BW 4040 R (Made in Korea)
Housing Material : 4’’ STAINLESS STEEL #304 SEAMLESS)
Qty : 4 PCS
5. ACCESSORIES & FITTINGS
Pressure Gauge : 3.0 MPa/1.0MPa SS With oil (3pcs)
Solenoid Valve : SANLIXIN 1’’ X 2 PCS
Low Pressure Control : LINERS CONTROL 1 KERAM CONTROL
Flow Meter Permeate : PURE LINE 5 GPM X 1
Flow Meter Reject : PURE LINE 5 GPM X 1
RO Programme Controller
Brand: Create Model: ROC 2315 Features: —
i. 6 Channels Signal Detection (Dry Contact Input)
- Raw Water (no water protection)
- Low Pressure Protection
- High Pressure Protection
- Pure Water Tank High Level
- External Control Mode Signal
- Running Reset
ii. 5 Channels Control Port (Dry Contact Output)
- Raw Water Pump
- Inlet Valve
- High Pressure Pump
- Flush Valve
- Conductivity Over Limit Drainage Valve
iii. Conductivity Detection
– Measurement Range: 5 – 2,000ppm
iv. Temperature Detection: 0 – 50°C
Switch and Control Panel
Telemecanique Relay Control Accessories :
a. Main Circuit Breaker
b. Control Circuit Booster and High-Pressure Pump, Isolating Transformer
c. Overload Relay
d. Shutdown Circuit For: –
- Dry Run
- Motor Overload
– Hand Off Auto Selector Switch
– Plant Running Indicating Lamp
6. SIKD MATERIAL & CONSTRUTION
Frame Material : STAINLESS STEEL #304
Contact Box : IP54 (Powder Coated Aluminum)
Low Pressure Piping : UPVC – SCH – 80
High Pressure Piping : UPVC – SCH – 80
