System Specification
9000 GPD

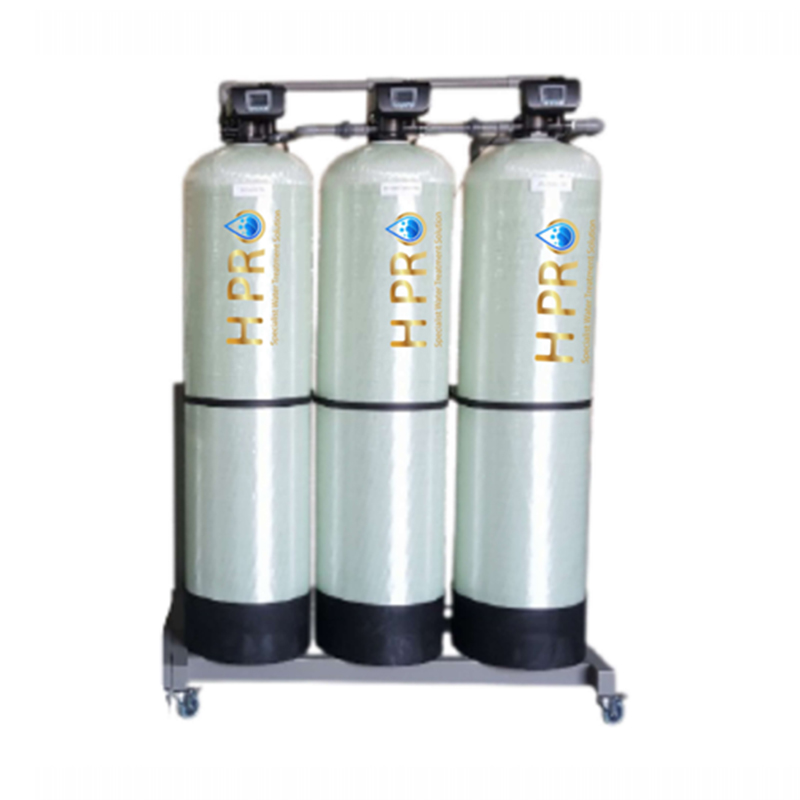

Pretreatment unit (PRE-SERIES)
1. RAW WATER FEED PUMP
| Brand | : G – PUMP |
| Model | : SHM 4-40 |
| Material | : SUS 304 |
| Motor | : 0.75KW |
| Volts/Current | : 220V-240V/50Hz/4.7A |
| Qty | : 1 Set |
2. MULTIMEDIA PRE-FILTERATION SYSTEM
Model : HP1665
Material : FIBREGLASS REINFORCE PLASTIC (FRP)
Media : SILICA SAND (4 SIZES)
Control Valve : DIGITAL AUTOMATIC CONTROLVALVE RUN XIN F 67B1
Qty : 1 Set
3. ACTIVATED CARBON FILTERTION SYSTEM
Model : HP1665
Material : FIBREGLASS REINFORCE PLASTIC (FRP)
Media : ACTIVATED CARBON 8X30
Control Valve : DIGITAL AUTOMATIC CONTROLVALVE RUN XIN F 67B1
Qty : 1 Set
4. SOFTENER RESIN FILTERATION SYSTEM
Model : HP1665
Material : FIBREGLASS REINFORCE PLASTIC (FRP)
Media : CATION RESIN
Control Valve : DIGITAL AUTOMATIC CONTROLVALVE RUN XIN F63B1
Brine Tank : PE (140L) + WATER SOFTENER SALT
Qty : 1 Set
5. MATERIAL OF CONSTRUTION
Frame Material : STAINLESS STEEL #304
Low Pressure Piping : UPVC – SCH – 80
High Pressure Piping : UPVC – SCH – 80
Approx. Height : 1670 0mm
Approx. Width : 1220 mm
Approx. Depth : 700 mm

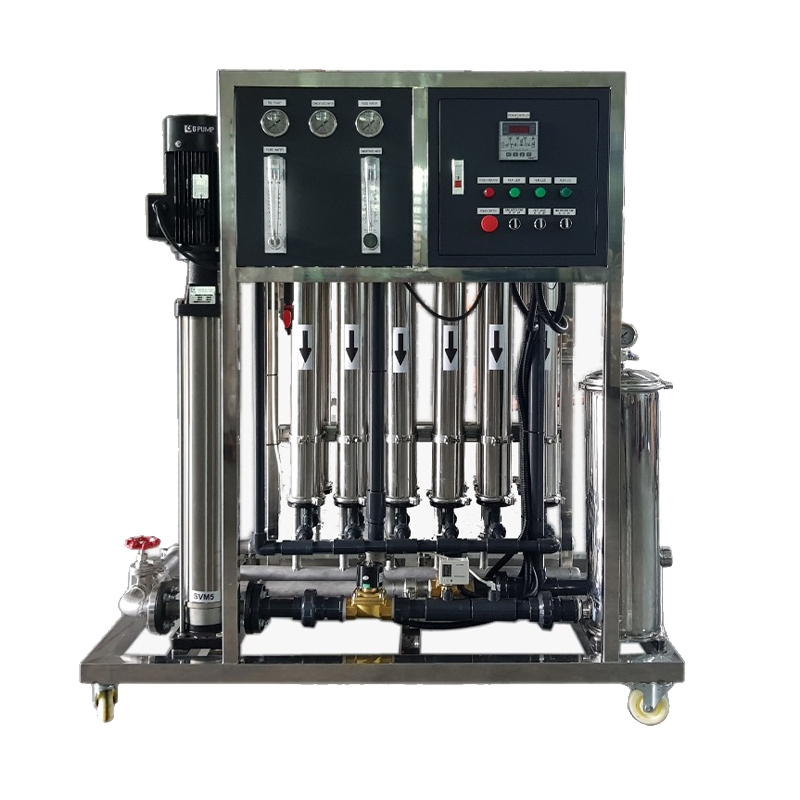

MAIN REVERSE OSMOSIS SYSTEM
1. REVERSE OSMOSIS SYSTEM
Model : HP – RO-9000 gpd
Approx. Height : 1900 mm
Approx. Width : 1350 mm
Approx. Depth : 700 mm
Capacity : 2.2T/hr
| Rejection | : 96% – 99% |
| Recovery | : 60% – 75% |
| Feed Water TDS | : 1500PPM |
| Nominal Perm..Rate | : 1.0m³/Hr |
| Approx. Conc. Rate | : 0.6m³/Hr |
| Approx. Conc Recycle Rate | : 0.6m³/Hr |
| Approx. Feed Rate | : 2.2m³/Hr |
2. HIGH PRESSURE PUMP
Brand : G-PUMP
Model : SVM 2-120
Power : 2.2 Kw / AC 230V
Qty : 1 UNIT
3. FILTER CATRIDGE HOUSING
Housing Model : STAINLESS STEEL MULTI CARTRIDGE HP PP 5
Housing Material : STAINLESS STEEL #304
Filter Cartridge : 2.75’’x 10’’ 5 MICRON PPF x 5 PCS
Quantity : 1 UNIT
4. MEMBRANE ELEMENTS AND HOUSING
Brand : LG NANO H20
Membrane Model : 4’’ – BW 4040 R (Made in Korea)
Housing Material : 4’’ STAINLESS STEEL #304 SEAMLESS)
Qty : 6 PCS
5. ACCESSORIES & FITTINGS
Pressure Gauge : 3.0 MPa/1.0MPa SS With oil (3pcs)
Solenoid Valve : SANLIXIN 1’’ X 2 PCS
Low Pressure Control : LINERS CONTROL 1 KERAM CONTROL
Flow Meter Permeate : 5 GPM X 1
Flow Meter Reject : 5 GPM X 1
RO Programme Controller
Brand: Create Model: ROC 2315 Features: —
i) 6 Channels Signal Detection (Dry Contact Input)
- Raw Water (no water protection)
- Low Pressure Protection
- High Pressure Protection
- Pure Water Tank High Level
- External Control Mode Signal
- Running Reset
ii) 5 Channels Control Port (Dry Contact Output)
- Raw Water Pump
- Inlet Valve
- High Pressure Pump
- Flush Valve
- Conductivity Over Limit Drainage Valve
iii) Conductivity Detection
- Measurement Range: 5 – 2,000ppm
iv) Temperature Detection: 0 – 50°C
Switch and Control Panel
Telemecanique Relay Control Accessories :
- Main Circuit Breaker
- Control Circuit Booster and High-Pressure Pump,
Isolating Transformer
- Overload Relay
- Shutdown Circuit For: –
- Dry Run
- Motor Overload
- Hand Off Auto Selector Switch
- Plant Running Indicating Lamp
6. SIKD MATERIAL & CONSTRUTION
Frame Material : STAINLESS STEEL #304
Contact Box : IP54 (Powder Coated Aluminum)
Low Pressure Piping : UPVC – SCH – 80
High Pressure Piping : UPVC – SCH – 80
